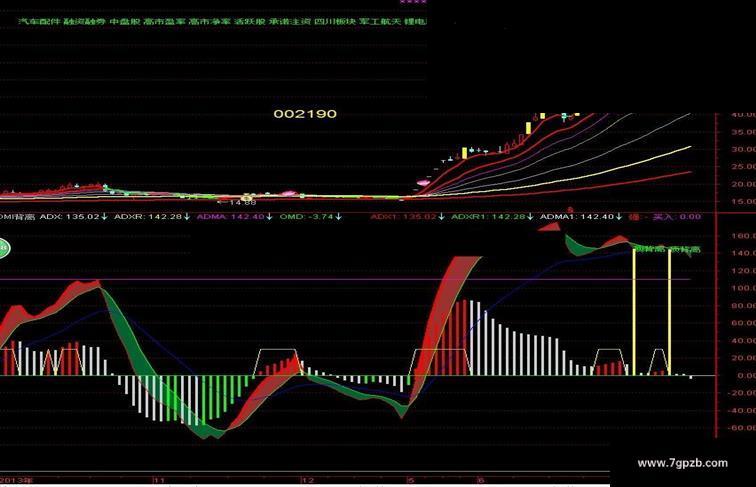

DMI背离指标（副图）直观

源码

N:=21;M:=6;M1:=20;
 TR1:=EMA(MAX(MAX(HIGH-LOW,ABS(HIGH-REF(CLOSE,1))),ABS(REF(CLOSE,1)-LOW)),N);
 HD :=HIGH-REF(HIGH,1);
 LD :=REF(LOW,1)-LOW;
 DMP:=EMA(IF(HD>0 AND HD>LD,HD,0),N);
 DMM:=EMA(IF(LD>0 AND LD>HD,LD,0),N);
 PDI:= DMP*100/TR1;
 MDI:= DMM*100/TR1;
 ADX: EMA((PDI-MDI)/(MDI+PDI)*100,M)*2;
 ADXR:EMA(ADX,M);
 ADMA:EMA(ADX,M1);
 OMD:(ADX-2*ADMA+ADXR)/2, COLORSTICK;
 DRAWBAND(ADX,RGB(155,50,50),ADXR,RGB(0,100,50));
 STICKLINE(OMD>REF(OMD,1) AND OMD>0,0,OMD,1,0),COLORRED;
 STICKLINE(OMD>REF(OMD,1) AND OMD<0,0,OMD,1,0),COLORGREEN;
 STICKLINE(OMD<REF(OMD,1),0,OMD,1,0),COLORCBCBC0;
 STICKLINE(OMD>=0 OR OMD<=0,0,0,50,1),COLORWHITE;
 ADX1:ADX,COLORRED;
 ADXR1:ADXR,COLORGREEN;
 ADMA1:ADMA;
强:IF(ADX1>=ADXR1,ADX1,DRAWNULL),COLORRED,LINETHICK3;
买入:IF(OMD>0 AND OMD-REF(OMD,1)>0,30,0);
 A1:=BARSLAST(REF(CROSS(ADX,ADXR),1));
 B1:=REF(C,A1+1)>C AND REF(ADXR,A1+1)<ADXR AND CROSS(ADX,ADXR);
 DRAWTEXT(B1>0,ADX-0.1,'底背离'),COLORFF00FF;
 STICKLINE(B1,0,ADX,0.5,0),COLOR0000FF;
 C1:=BARSLAST(REF(CROSS(ADXR,ADX),1));
 D1:=REF(C,C1+1)<C AND REF(ADX,C1+1)>ADX AND CROSS(ADXR,ADX);
 DRAWTEXT(D1> 0,ADX+0.1,'顶背离'),COLOR00FF00;
 STICKLINE(D1,0,ADX,0.5,0),COLOR00FFFF;
 110;
 0;
 -110;
